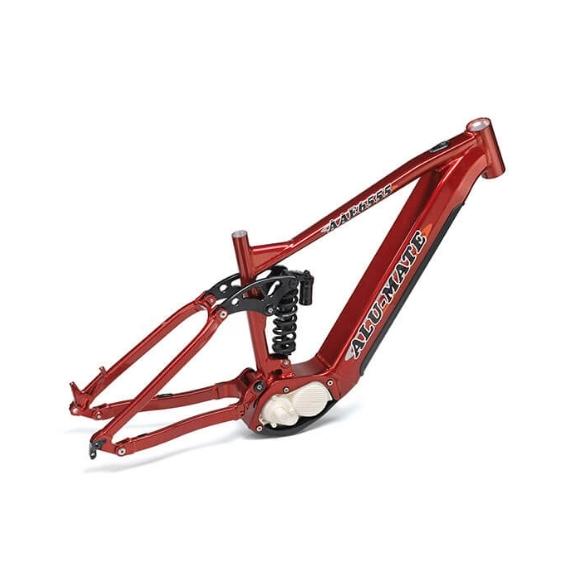

AAE6555
電動避震車
- Material Aluminum：A6061
- Mfg. Method：TIG welding / Tig Pulse
- Frame Sizes (C to T)：S( 400mm )/M(425mm )/L(450mm )/XL(480mm )
- Motor System：Shimano EP8
- Battery：Shimano
- HT：1 ⅛'' - 1 ½', FSA NO.57，NO.51
- Seat Post：ø30.9
- Rear Hub：148 x 12mm E-thru System，M12*1.75
- Dropout：Post Mount，(R)203mm
- Tire：(R) 27.5"(Max o.d 724mm*Width 71mm)，(F) 29"(Max o.d 752mm*Width 71mm)
- Travel：(R) 150mm
- Shock Length( C to C)：205 x 60 mm
- Shock Bushing Upper：Trunnion M10 x 1.0 x WIDTH (52mm)
- Shock Bushing Lower：ID (ø8mm) x WIDTH (35mm)
- Weight： g(460mm w/o Shock)
