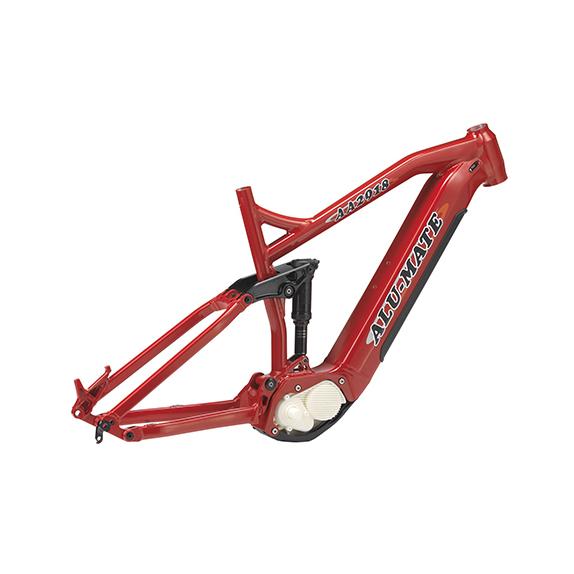

AA2918
Electric mountain bike-full suspension
- Material Aluminum：A6061
- Mfg. Method：Flat welding / Tig Pulse(Flat welding of the joint between the head tube and the top and down tubes&Flat welding of the joint between the seat tube and the top tube)
- Frame Sizes (C to T)：16"/18"/20"
- Motor System：Shimano DU-EP801
- Battery：Darfon E4C0C(504Wh)Horizontal
- HT：1 ⅛'' - 1 ½', FSA NO.57
- Seat Post：ø30.9
- Rear Hub：148 x 12mm E-thru System，M12*1.75
- Dropout：Post Mount，(R)203mm
- Tire：(R) 29" (Max o.d 759mm*Width 65mm)，(F) 29" (Max o.d 759mm*Width 65mm)
- Travel：(R) 151mm
- Shock Length( C to C)：205 x 65 mm，TRUNION
- Shock Bushing Upper：22.2mm / ø8
- Bushing Lower：22.2mm / ø8
- Weight：
